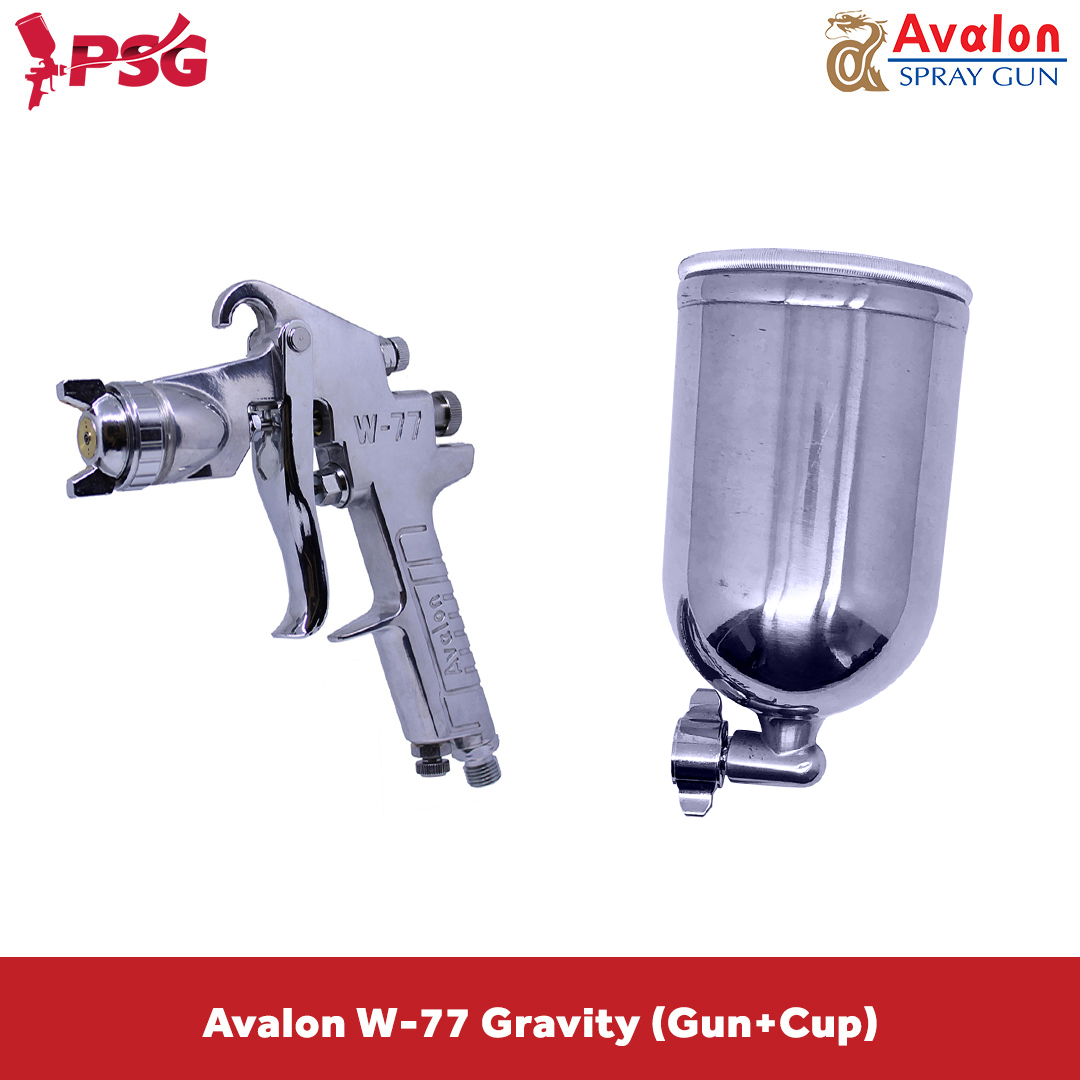

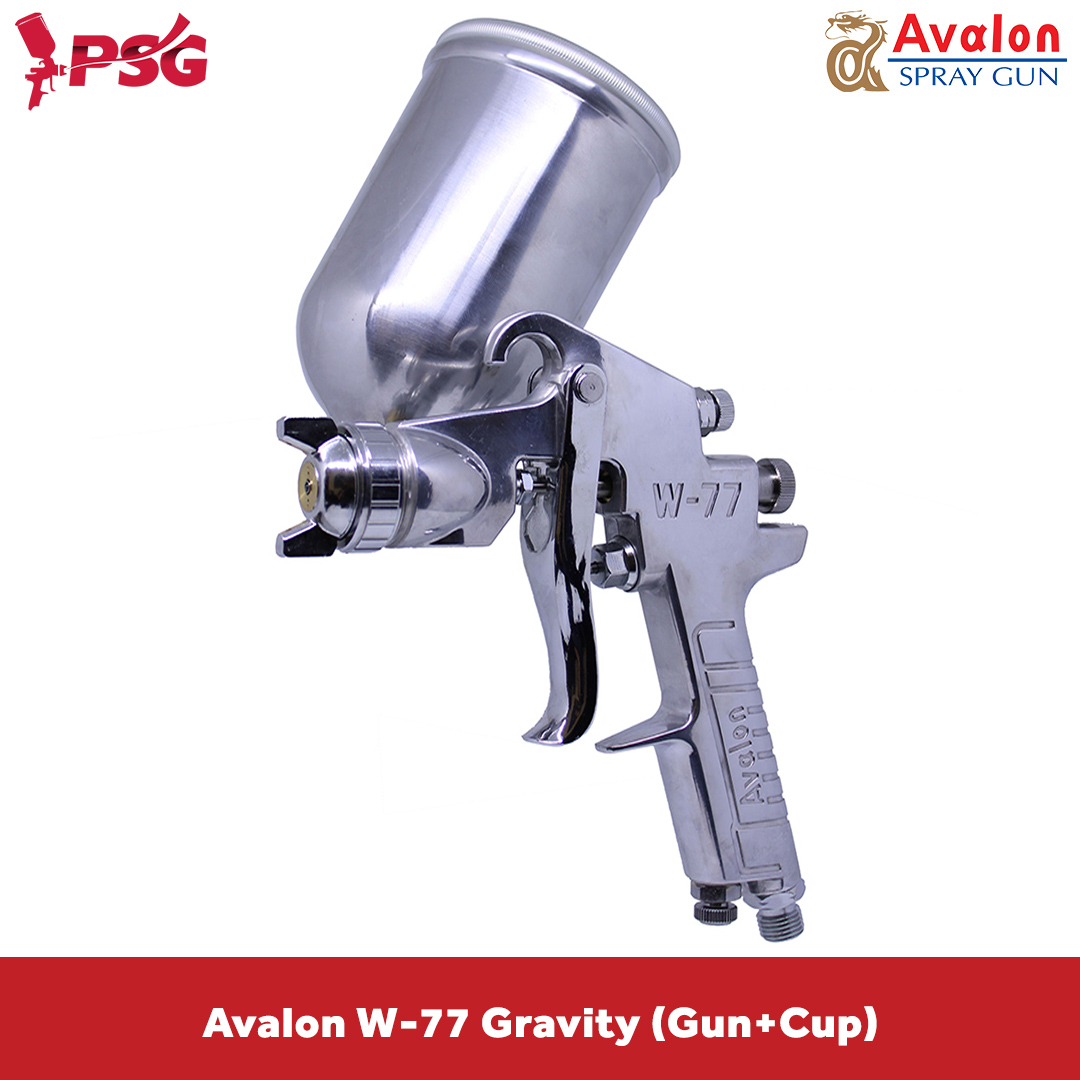

Avalon Spraygun W-77 Gravity (Gun + Cup)

Spesifikasi:

Paint feed system: Gravity
Nozzle bore 1.5 (mm)
Air pressure (Mpa) (kg/cm²) 0,34 (3,5)
Spray Distance (mm) 250
Air Volume (l/min) 290
Spray Volume (ml/min) 285
Spray Range (mm) 290
——————————————————————
Paint feed system: Gravity
Nozzle bore 2.0 (mm)
Air pressure (Mpa) (kg/cm²) 0,34 (3,5)
Spray Distance (mm) 250
Air Volume (l/min) 340
Spray Volume (ml/min) 390
Spray Range (mm) 335
——————————————————————
Paint feed system: Gravity
Nozzle bore 2.5 (mm)
Air pressure (Mpa) (kg/cm²) 0,34 (3,5)
Spray Distance (mm) 250
Air Volume (l/min) 350
Spray Volume (ml/min) 450
Spray Range (mm) 300
——————————————————————
Paint feed system: Gravity
Nozzle bore 3.0 (mm)
Air pressure (Mpa) (kg/cm²) 0,34 (3,5)
Spray Distance (mm) 250
Air Volume (l/min) 360
Spray Volume (ml/min) 450
Spray Range (mm) 300
